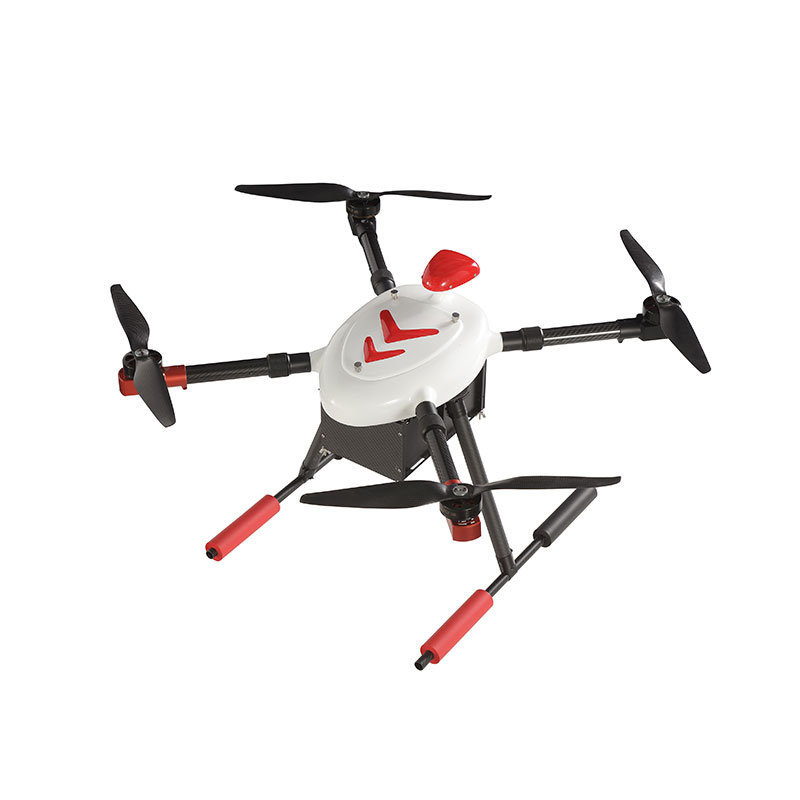

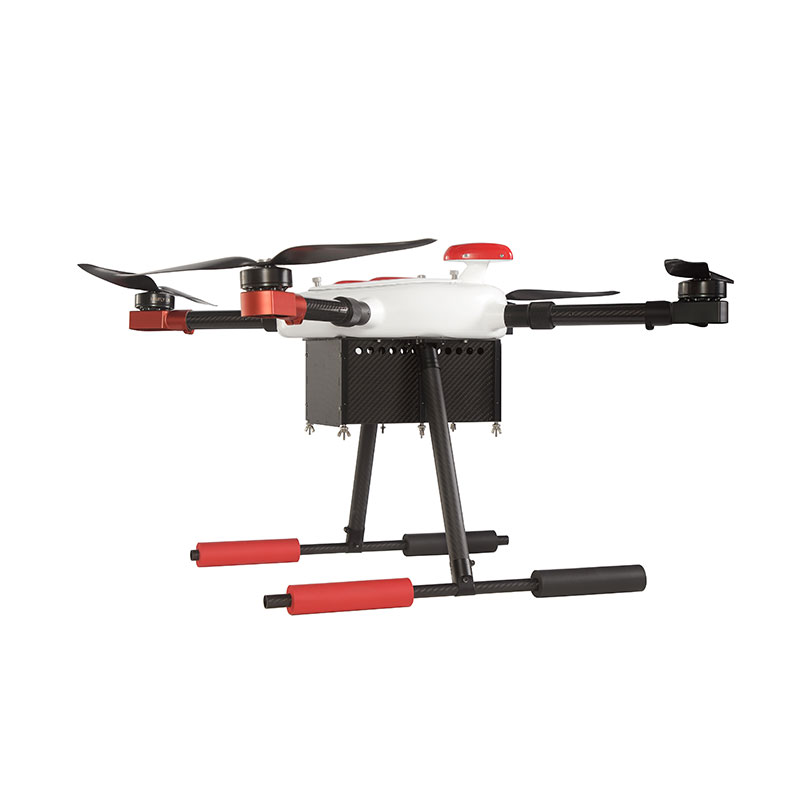

HI4830 Carbon Fiber Integrated Frame
HI4830 Carbon Fiber Integrated Frame HI4830 Carbon Fiber Integrated Frame
HI4830 Carbon Fiber Integrated Frame HI4830 Carbon Fiber Integrated Frame
HI4830 Carbon Fiber Integrated Frame HI4830 Carbon Fiber Integrated Frame

loading

HI4830 Carbon Fiber Integrated Frame

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket
Product Description

Performance Parameter

Fuselage materialTORAY (Japan Toray) 3K carbon fiber
Manufacturing processmolding + internal pressure
Shell thickness0.6mm
Wheelbase830mm
Overall height500mm
Case weight1900g
No-load endurance60 minutes (2pcs 25000mah battery)
MAX load weight3kg@30min
Max motorSeries 6
Max PROP21 Inch
