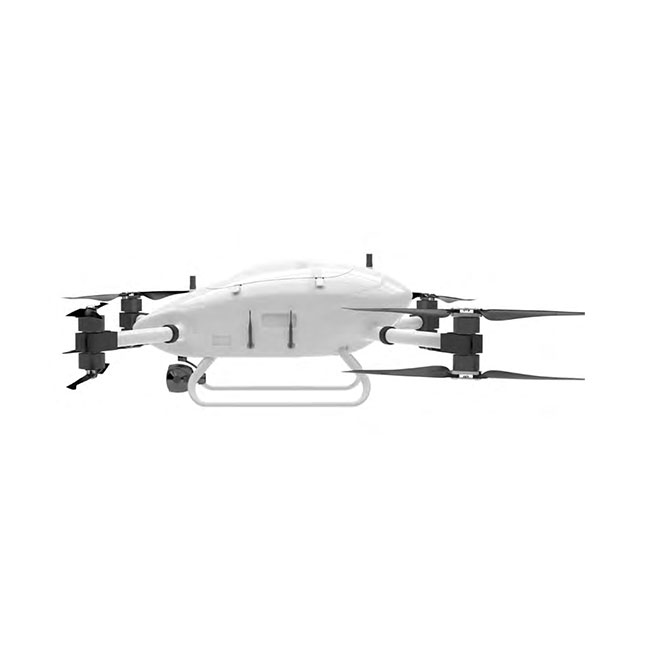

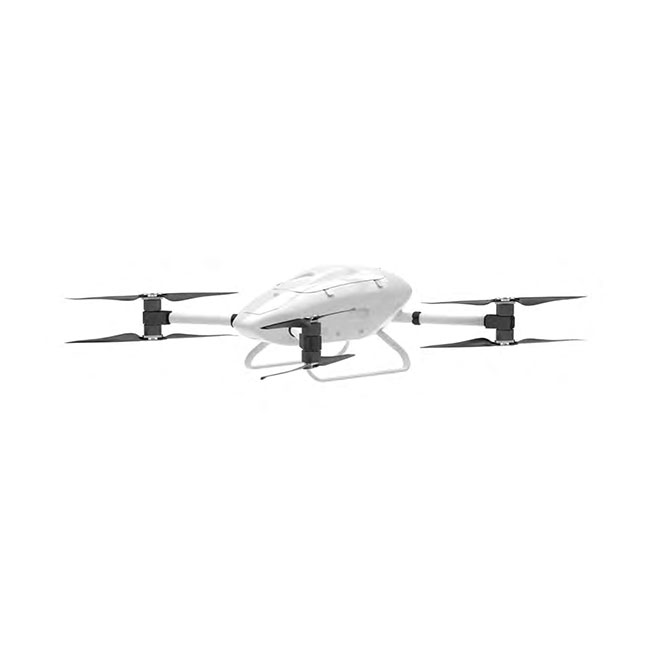

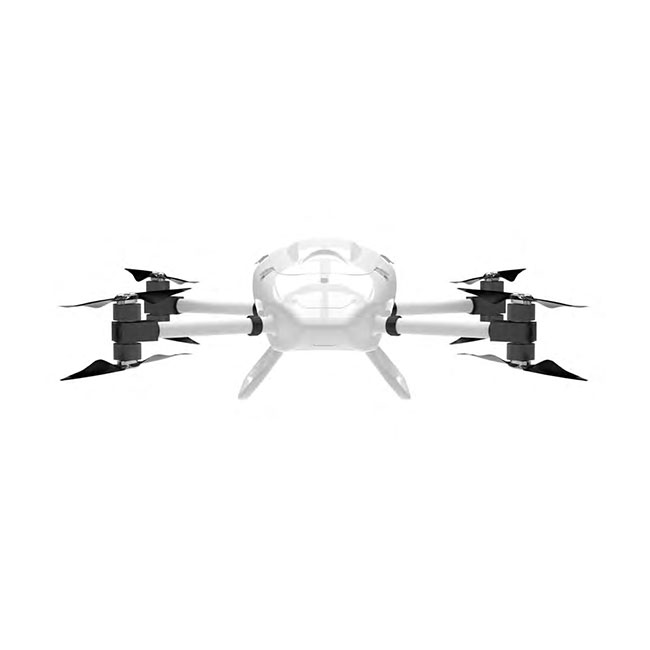

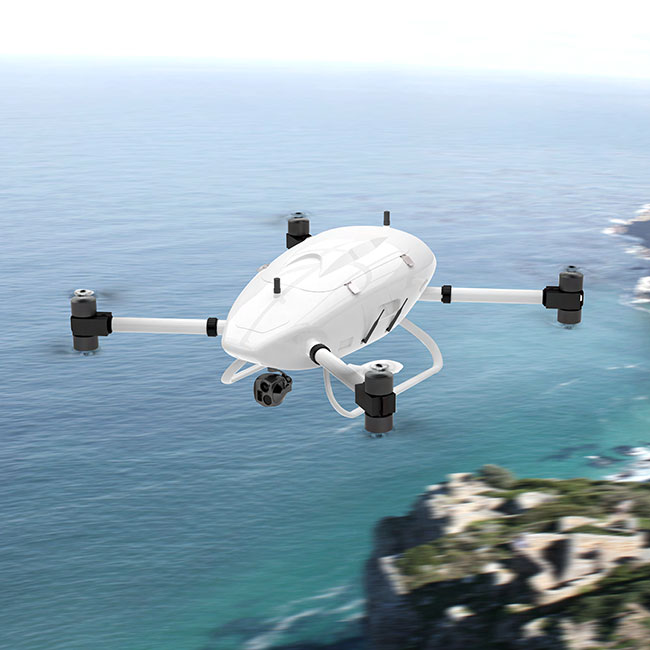

MD-X8 Carbon Fiber Monocoque Frame
MD-X8 Carbon Fiber Monocoque Frame MD-X8 Carbon Fiber Monocoque Frame
MD-X8 Carbon Fiber Monocoque Frame MD-X8 Carbon Fiber Monocoque Frame
MD-X8 Carbon Fiber Monocoque Frame MD-X8 Carbon Fiber Monocoque Frame
MD-X8 Carbon Fiber Monocoque Frame MD-X8 Carbon Fiber Monocoque Frame

loading

MD-X8 Carbon Fiber Monocoque Frame

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket
Product Description

Performance Parameter


Fuselage materialTORAY 3K cabon fiber
Manufacturing processInternal pressure
Shell thickness1.5mm
Wheelbase2400mm
Overall height1000mm
Case weight15.5Kg
Max Take off weight110KG
MAX load weight

60kg@18min,30KG@30min

Max PROP60Inch
No-load endurance55min (4pcs 14S 35000mah UliHVbattery)


Inquire
