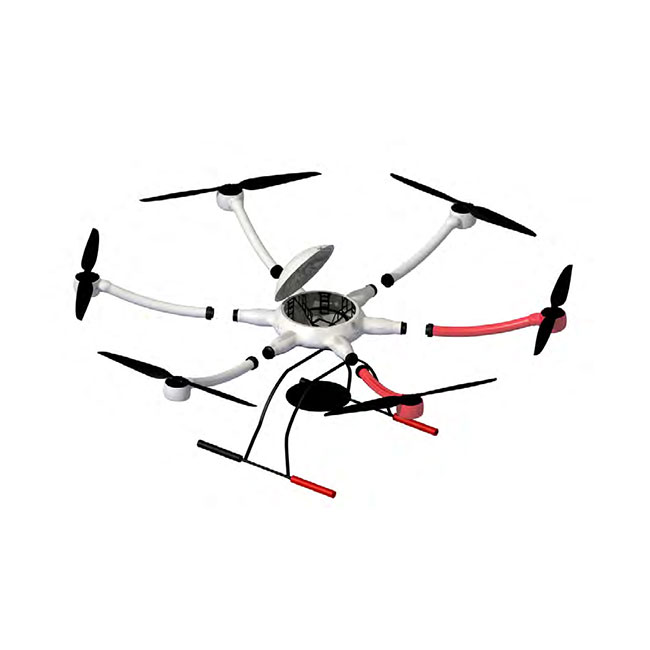

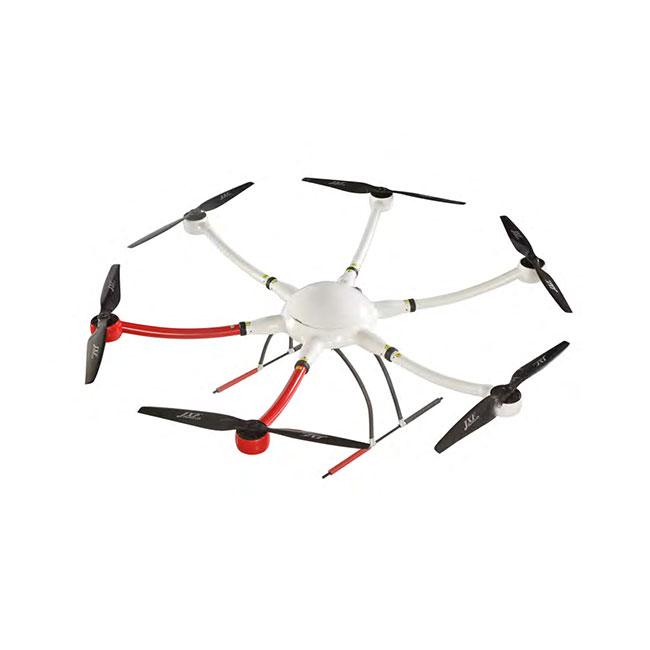

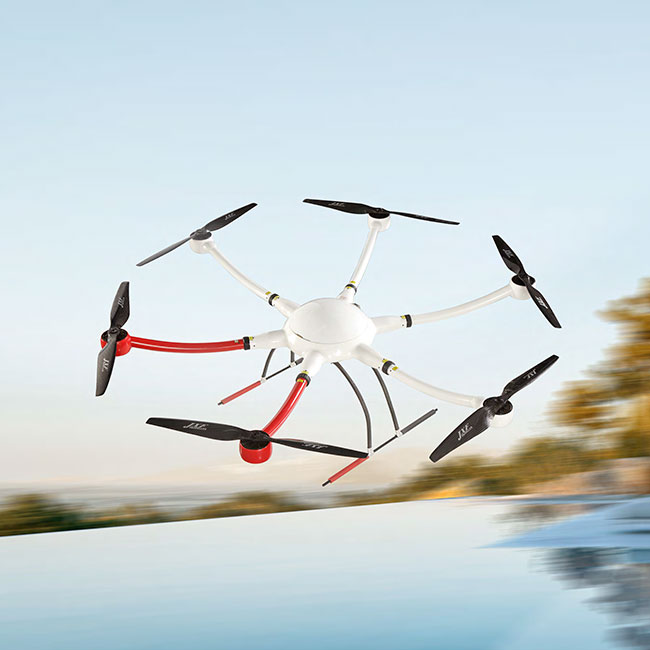

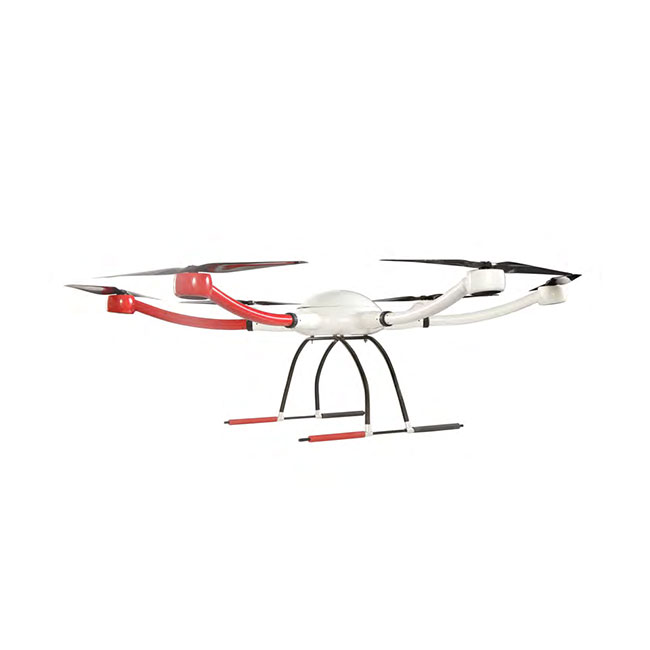

HW61600 Carbon Fiber Monocoque Frame
HW61600 Carbon Fiber Monocoque Frame HW61600 Carbon Fiber Monocoque Frame
HW61600 Carbon Fiber Monocoque Frame HW61600 Carbon Fiber Monocoque Frame
HW61600 Carbon Fiber Monocoque Frame HW61600 Carbon Fiber Monocoque Frame
HW61600 Carbon Fiber Monocoque Frame HW61600 Carbon Fiber Monocoque Frame

loading

HI61600 Carbon Fiber Monocoque Frame

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket
Product Description

Performance Parameter


Fuselage materialTORAY 3K cabon fiber
Manufacturing processInternal pressure
Shell thickness0.6mm
Wheelbase1600mm
Overall height500mm
Case weight2200g
No-load endurance75min (2pcs 25000mah battery)
MAX load weight

7kg@25min

Max PROP29Inch
Max motorSeries 8
