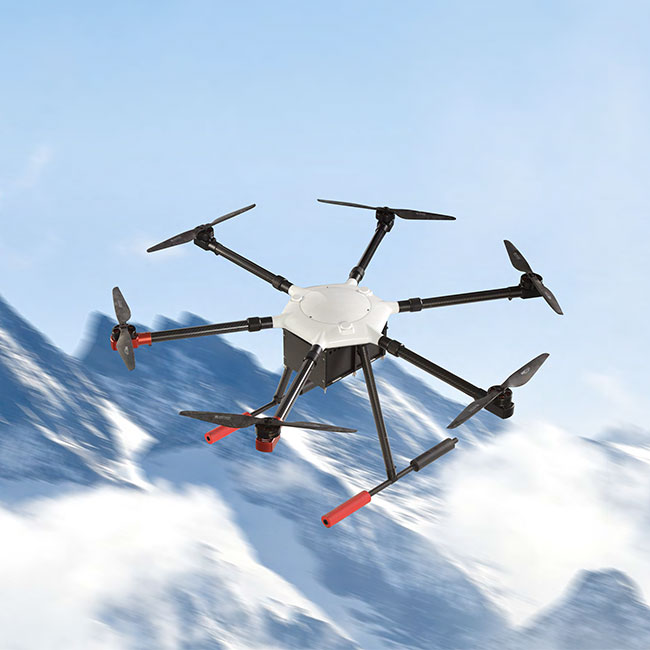

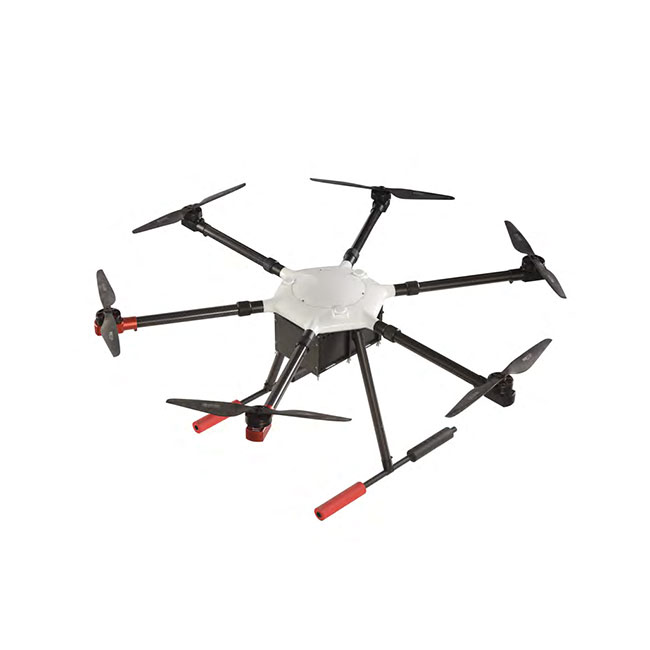

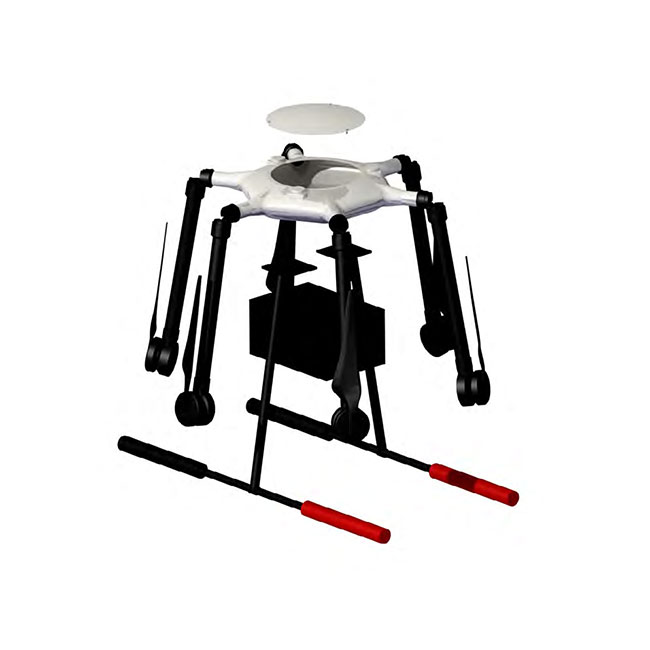

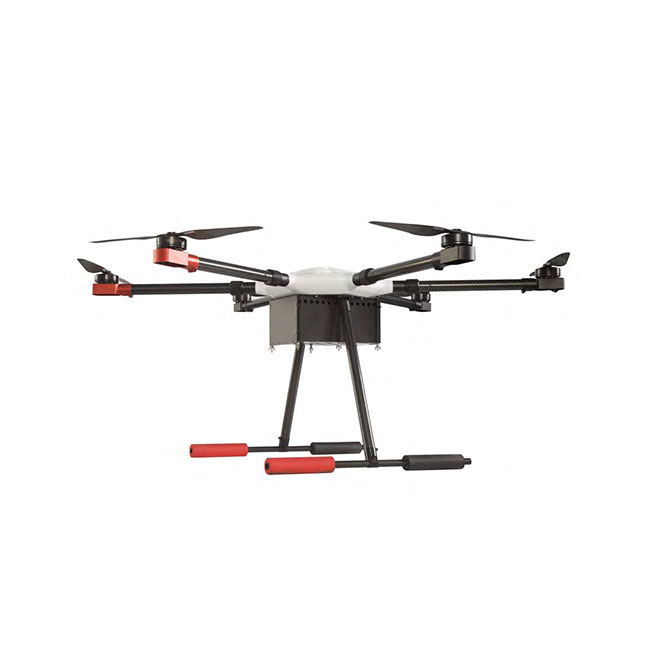

HD61130 Carbon Fiber Monocoque Frame
HD61130 Carbon Fiber Monocoque Frame HD61130 Carbon Fiber Monocoque Frame
HD61130 Carbon Fiber Monocoque Frame HD61130 Carbon Fiber Monocoque Frame
HD61130 Carbon Fiber Monocoque Frame HD61130 Carbon Fiber Monocoque Frame
HD61130 Carbon Fiber Monocoque Frame HD61130 Carbon Fiber Monocoque Frame

loading

HI61130 Carbon Fiber Monocoque Frame

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket
Product Description

Performance Parameter


Fuselage materialTORAY 3K cabon fiber
Manufacturing processInternal pressure
Shell thickness0.6mm
Wheelbase1130mm
Overall height600mm
Case weight2200g
MAX load weight

5kg@30min

Max PROP21Inch
Max motorSeries 6
No-load endurance70min（2pcs 25000mah battery）


Inquire
